Micro-XRD (X-ray Diffractometer)
- 모델명
Rigaku MicroMax-007HF
- 주요기능
- Powder X-ray diffraction (PXRD)
- Single-crystal X-ray diffraction (SXRD)
- In-situ high-pressure and high-temperature X-ray diffraction
- Small-angle X-ray scattering (SAXS)
제원(spec.)

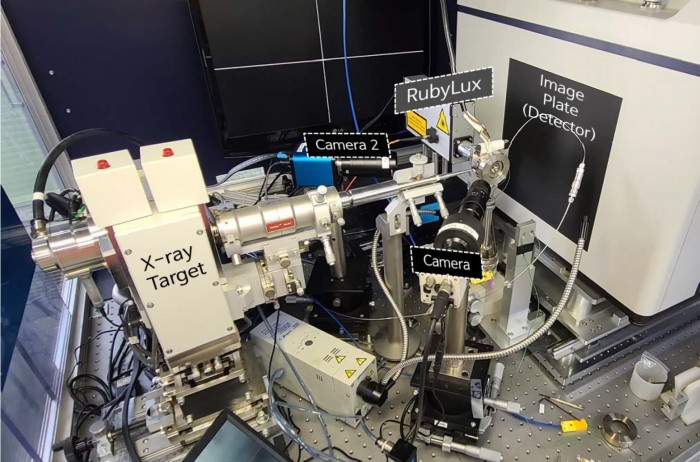

Technical specification of MicroMax-007HF |
|
1. X-ray generator |
|
Target |
Rotating anode Mo Ka / λ=0.7107(1)Å |
W x D x H /mm |
Optimal focus (0.1x0.1 / 0.2x0.2 / 0.3x0.3) |
Voltage / current |
50 KV / 24 mA |
2. Detector |
|
Model |
R-AXIS IV++ |
Type |
Image plate |
Dimension |
0.1x0..1 mm2/plxel (3000x3000 pixels) |
Camera length |
70 - 300 mm (Defaul : 180mm) |
3. Coupled devices |
|
Camera |
2 cameras DAC centering (front) Capillary centering (back) |
Pressure calibration |
Rubylus Motorized X-Y-Z stage |
4. Sample positioning |
|
Stage |
gear-based goniometer X-Y-ZΦ(phi) |
